Bianchi e-Omnia T Type eBike Step-Through Nexus 5sp Belt Drive YSBE7 in Metal grey / Graphite Full Matt (XL Size)

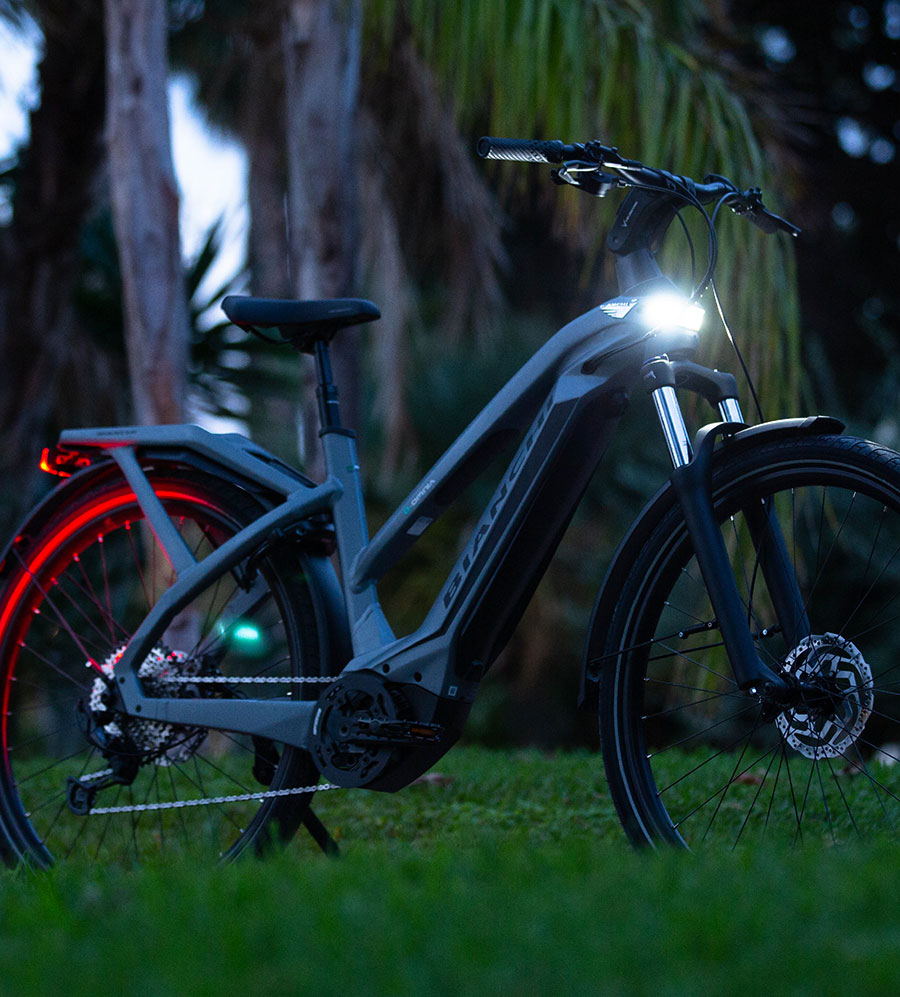

Bianchi e-Omnia T Type eBike Step-Through Nexus 5sp Belt Drive YSBE7 in Metal grey / Graphite Full Matt (XL Size) - Image 2
Bianchi e-Omnia T Type eBike Step-Through Nexus 5sp Belt Drive YSBE7 in Metal grey / Graphite Full Matt (XL Size) - Image 3

Bianchi e-Omnia T Type eBike Step-Through Nexus 5sp Belt Drive YSBE7 in Metal grey / Graphite Full Matt (XL Size)

Original price was: $7,249.00.Current price is: $6,749.00.

RIDING RAIL TRAILS WITH STYLISH EASE

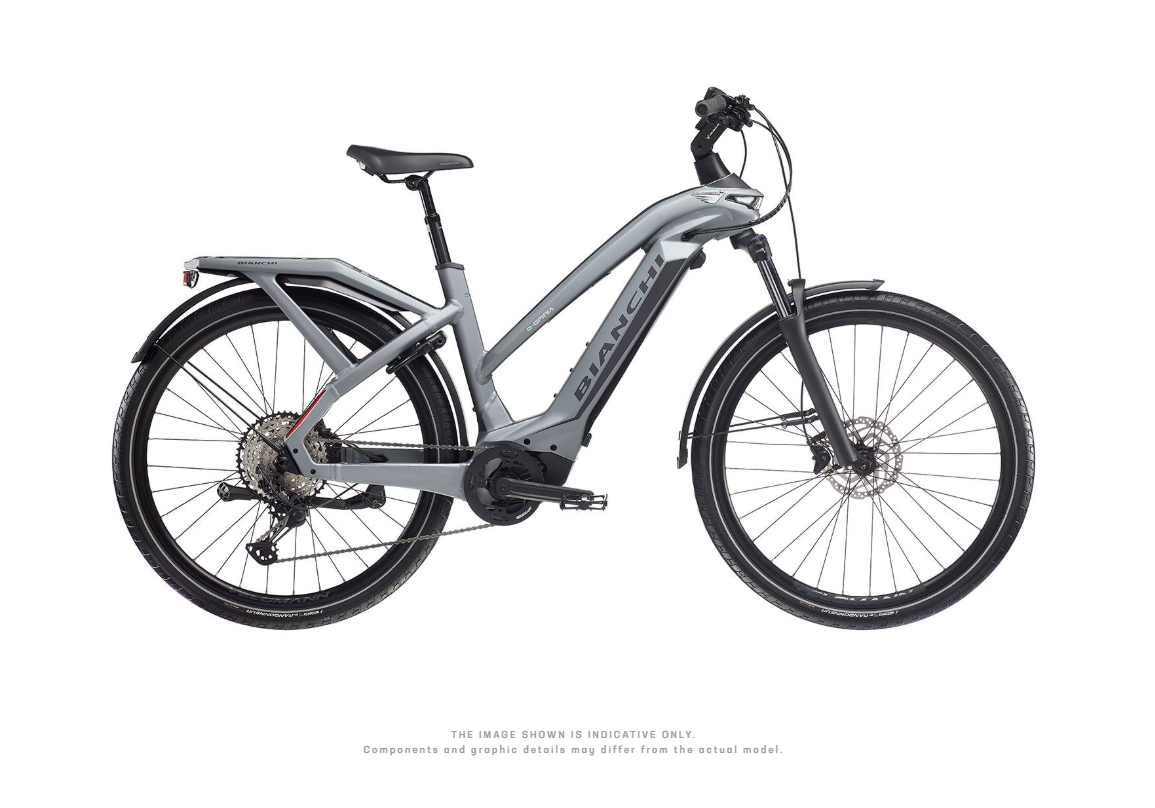

Nb. This model for sale is the top spec version of the e-Omnia with a carbon belt drive system and integrated Nexus gear hub with 5 speeds. Display photos will show this bike with a chain drive system which is found on the lower spec models.

The e-Omnia T-Type is a utilitarian e-bike designed to be the first choice for fitness, commuting, or just riding for pleasure.
With front suspension and some intelligent design features, it can handle anything from smooth asphalt to light gravel.

The T-Type is avaiable with standard frame and also with step-through frame, with both frames engineered using gravity casting technology for frame stiffness and a sleek finish.

The Bosch motor unit comes with a couple of extra features, with an integrated display in the stem, as well as the choice to run a belt drive with Shimano Nexus internal hub. The belt drive lowers maintenance and cuts out noise, two key considerations for a utility e-bike.

We provide the T-Type fitted in store with complimentary offroad tyres, rather than the slick city tyres as shown in the product images.

Categories: , , , Tags: , , , , , Brand:

Description

Tech specs

  • Motor Unit

    1. Motor

      Bosch Performance Line CX, 250W, 85Nm, Kiox display

    2. Battery

      Bosch Powertube 625Wh integrated battery

  • Frameset

    1. Frame

      E-OMNIA T-Type Step-through belt drive ALU sizes: 43-48-53 – IG 135 mm quick release dropouts (special dropout for internal gear) – Post mount 180 disc brake type – Internal cable routing in DT – Frame lock compatible – 625Wh compatible – custom rear carr

    2. Fork

      Sram RockShox Recon Silver RL 29″, 120mm travel, 1.5″ tapered HT, Maxle Stealth 15x110mm BOOST axle, minimum 160mm rotor, maximum 220mm rotor, 42mm rake, 61mm crown, Solo Air, extl rebnd, 32mm stanchions

    3. Headset

      FSA NO.55R/558 1.5″

  • Drivetrain

    1. Shifters

      Shimano, SL-C7000-5, NEXUS, REVO SHIFTER, 5-SPEED

    2. Crankset

      FSA Metropolis, Alloy, 170mm FSA Steel Chainring 38T

    3. Bottom Bracket

      included in the motor

    4. Chain

      CDXB118, CDX Belt Gates Carbon Drive, 118T, black 1298 mm Length, 11 mm Pitch, 12 mm Width

  • Brakes

    1. Brakes

      Promax, DSK-925

    2. Rotor

      Promax DSK-925, 180mm, center lock

  • Wheels

    1. Wheels

      Velomann E-Sport Tubeless Ready 29″, 25-622, 32 hole

    2. RearHub

      Shimano, SG-C7000-5D, NEXUS, 5-SPEED, FOR CENTER LOCK DISC BRAKE, 32H 135X187MM

    3. FrontHub

      Formula CL-811 for Center Lock, 32h, 15x110mm TA

    4. Tire

      Vittoria e-Randonneur, 50-622

  • Cockpit

    1. Stem

      Velomann 35,3D FORGED 0°>90° L70MM

    2. Handlebar

      Velomann 31.8/680mm, RISE 20MM, SWEEP 15°

    3. Grips / Extensions

      Herrmans Grip

  • Saddle

    1. Seatpost

      Velomann 31.6*350, suspension seatpost

    2. Saddle

      Velomann, 285x187mm, 399gr

  • Accessories

    1. Pedals

      VP, axle 7mm boron steel, EPB system size 116x103mm with reflector, ED black

    2. Mudguards

      SKS PET Mudguards A65 R /28″

    3. Kickstand

      Velomann load 35kg

    4. RearCarrier

      custom rear carrier integrated into the frame design

    5. FrontLight

      Spanninga custom integrated light, 40 lux

    6. RearLight

      Spanninga custom integrated light

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

Geometry

Bianchi e-Omnia T Type eBike Step-Through Nexus 5sp Belt Drive YSBE7 in Metal grey / Graphite Full Matt (XL Size) 1
