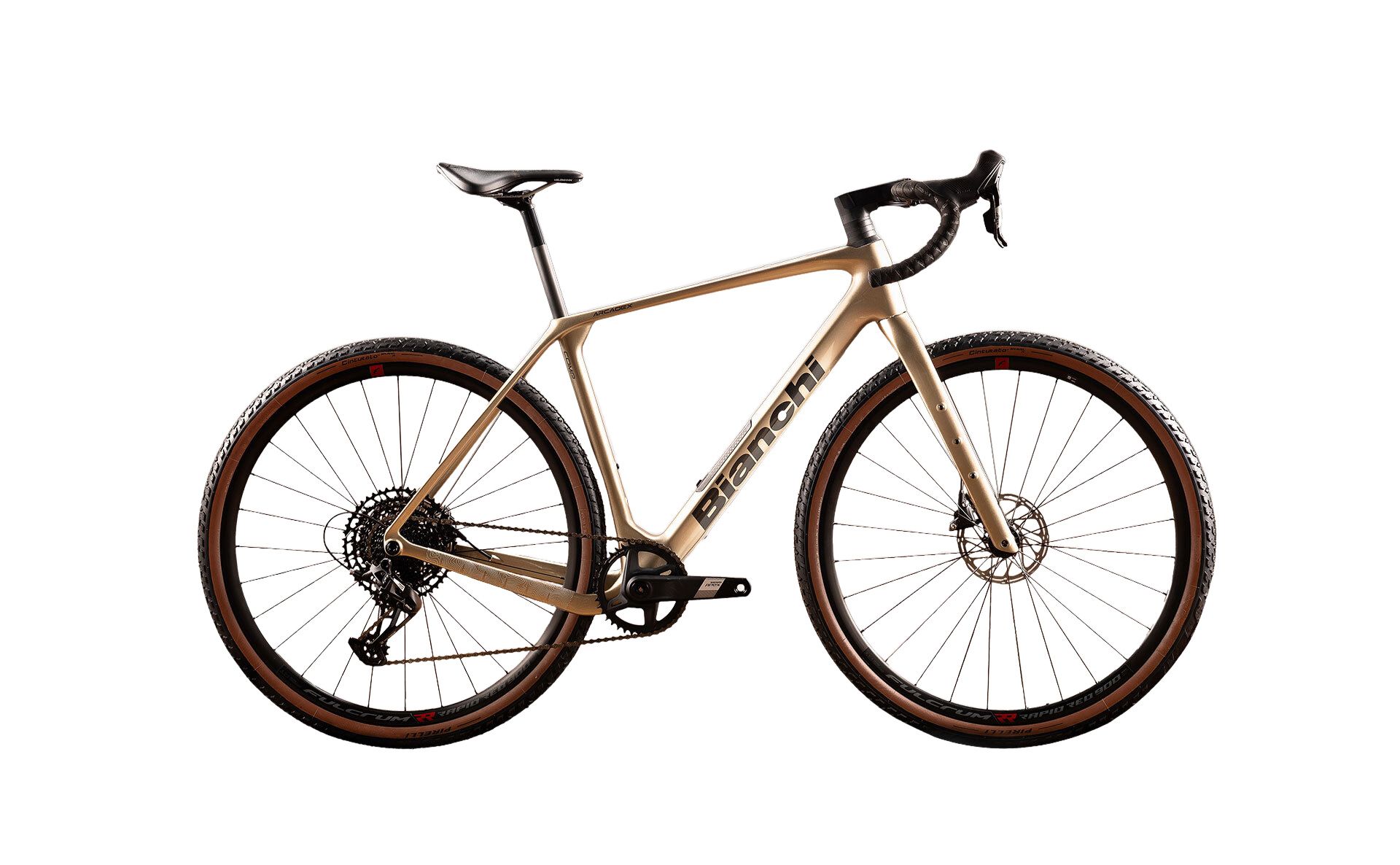

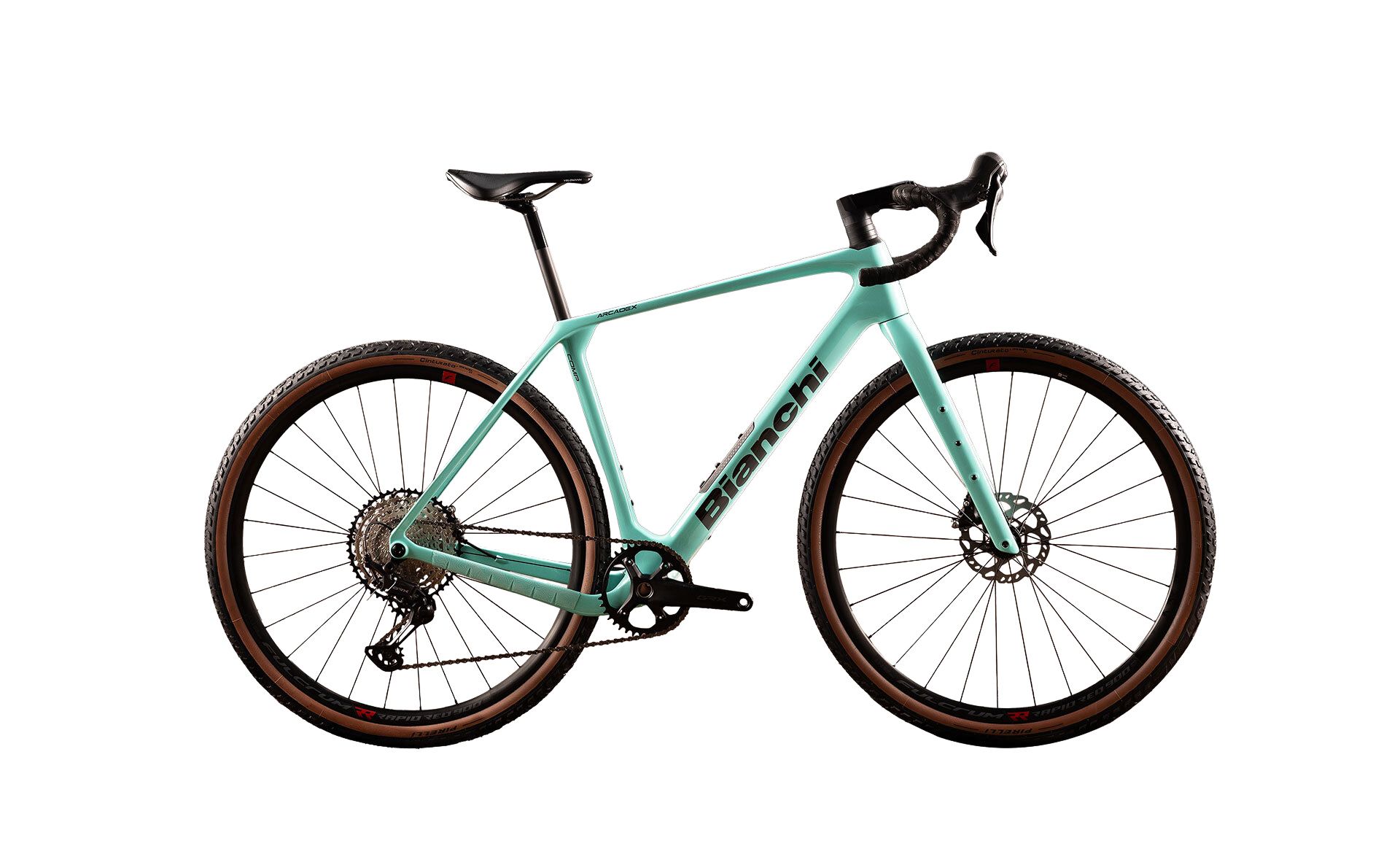

Bianchi Arcadex Comp SRAM APEX Disc 1x12sp in Gold (MED) or Celeste (LARGE)

Description

Bianchi Arcadex Comp SRAM APEX Disc 1x12sp in Gold or Celeste (MED and LRG Size Available)

Are you ready to explore? This is a gravel bike that you can do it all! Race, cruise, ride tarmac / gravel tracks.. whatever comes your way, the Arcadex is your companion for adventure.

We are a proud Bianchi dealer for the south west region surrounding Margaret River. Please contact our store if you are looking for anything special from the Bianchi cartalogue as we can order in just about anything in as desired!

Tech Specs

• Frameset

  1. Frame

     Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5

  2. Fork

     Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8″” Material: Epoxy – SM Carbon Fiber Composite

  3. Headset

     Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compression Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal

• Drivetrain

  1. Shifters

     Sram Apex D1

  2. Rear Derailleur

     Sram Apex Eagle Maximum Cassette Sprocket 52T

  3. Crankset

     Sram Apex 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)

  4. Bottom Bracket

     Sram DUB PressFit Road Wide 86.5

  5. Chain

     Sram SX Eagle

  6. Cassette

     Sram SX Eagle, PG-1210 11-50T Driver Body Interface: HG11

• Brakes

  1. Brakes

     Sram APEX Pad Type: Steel-Backed Organic

  2. Rotor

     Sram CenterLine Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

• Wheels

  1. Wheels

     Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm

  2. Tire

     Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall

• Cockpit

  1. Stem

     Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8″” (28.6mm) HB interface Diameter: 1-1/4″” (31.8mm) Stem Lengths: 80mm –

  2. Handlebar

     Velomann Gravel ICR Alloy Flare: 16° ​​Drop: 130mm Reach 70mm Interface Diameter: 1 1/4″” (31.8mm) HandleBar Widths: 400 – SX(47) SM(51), 420 – MD(55) LG(58), 440 -XL(61)

  3. Grips / Extensions

     Bianchi Hexagon tape 2.5mm thickness, Full black

• Saddle

  1. Seatpost

     Velomann Carbon UD SeatPost OD: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61)

  2. Saddle

     Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel length: 250mm width: 149mm

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
